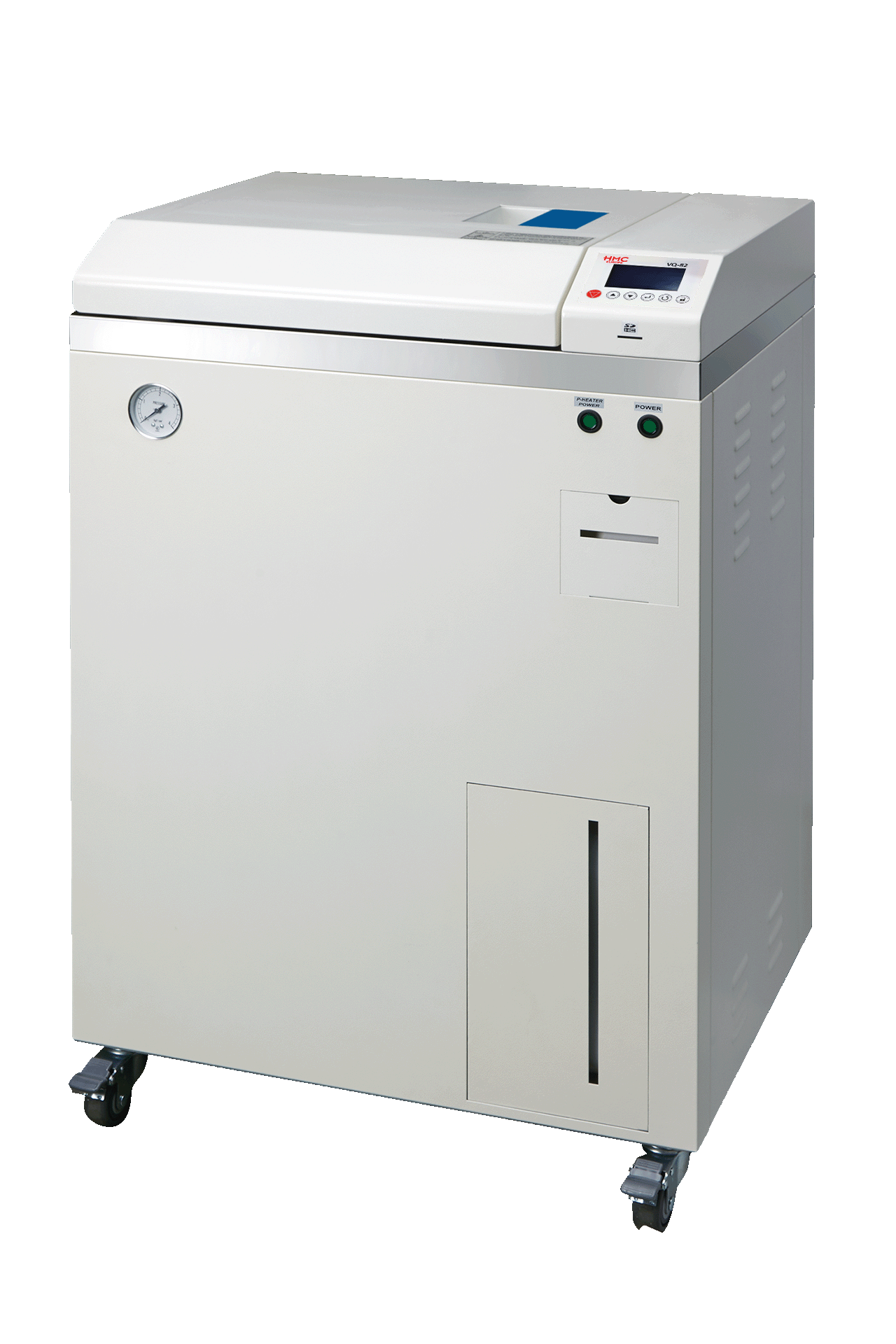

Vertical autoclaves Classic-Line: VQ-series

Best value for money with a vacuum function

Certified according to the Pressure Equipment Directive 2014/68/EU
Available with 71 liters of effective usable volume (chamber volume 82 litres)
Can also be fitted with exhaust air filtration on request for laboratories with biosafety level 2 or higher
Sterilisation temperatures up to 135°C
Packed with features as standard – comprehensive equipment for your daily laboratory work, such as:
- Media temperature sensor for sterilising liquids
- Vacuum function for sterilising porous materials, hollow items, textiles and more
- Automatic water supply – can be switched on and off as required
- Various preset and two individually programmable autoclaving programmes
- Printer and SD card slot for documenting your sterilisation cycles
- Castors for increased mobility of the unit
Electrical, mechanical and constructional factors guarantee the highest level of user protection

Techn. Data VQ		VQ-82
Art.-No. without exhaust air filtration		26001 (including exhaust air filtration: 26002)
Chamber Volume	liters	82
Effective usable volume	liters	71
Chamber dimensions Ø x H	mm	380 x 756
External dimensions B x T x H	mm	670 x 580 x 1010
Loading height	mm	870
Required space B x T x H	mm	780 x 970 x 1500
Electrical power	kW	heater 3.6 / pipe heater 0.043 Vacuum pump 0.15
Weight	kg	135
Power Supply	V	AC 400V - 50/60 Hz - 3-phase
Allowed operating temperature	°C	140
Selectable operat. temperature	°C	105 - 135 (Selection depending on the program)
Warming temperature	°C	40 - 60
Max. operating pressure	bar	2.2
Timer function		no
Sterilization time	min.	0 - 419
Locking system		Quick release with hand lever
Certification		2014/68/EU, CE 0035 2014/35/EU 2014/30/EU 2011/65/EU
Vessel material		SUS304 (stainless steel)
Integrated steam generator		No
Vacuum		yes
Safety systems	Electromagnetic safety lock system, safety valve, low water cut-out, overpressure switch, power cut-off switch, fault indicator (visual and audible)
Documentation	SD/HC with a maximum capacity of 32 GB, thermal printer

VQ-Series / Loading capacities	Basket
Art. No.	56002
Ext. dimensions (Ø x H) in mm	363 x 290
Int. dimensions (Ø x H) in mm	355 x 280
Baskets p. device	2

Configuration options	Art. No.
Device including exhaust air filtration	26002
Automatic feed water	standard
Integrated printer	standard
Flexible temperature sensor	standard
Pipe heater for AGAR	standard
Air cooling	standard
Vacuum	standard
SD-Card Slot	standard
Practical castors	standard
