Vertical autoclaves Premium-Line: HS-series

Home Autoclaves Vertical autoclaves: Premium-Line Vertical autoclaves Premium-Line: HS-series

Features at first glance:

  • Certified in accordance with the Pressure Equipment Directive 2014/68/EU
  • Available in three sizes with 60, 80 and 100 liters of usable volume
  • Chamber made of stainless steel (AISI 316L)
  • Even the basic model (B) comes with an integrated steam generator, automatic water feed and media temperature sensor for safe and efficient sterilization
  • Various configuration levels enable more functions and convenience, including:
    • Fast cooling system for liquid sterilization
    • Counter-pressure function
    • Vacuum pump
  • Further options are available on request:
    • Exhaust air filtration for laboratories classified as safety level I, II or higher
    • Sterilization documentation via printer or software
    • Ergonomic lift for loading and unloading heavy sterilization items

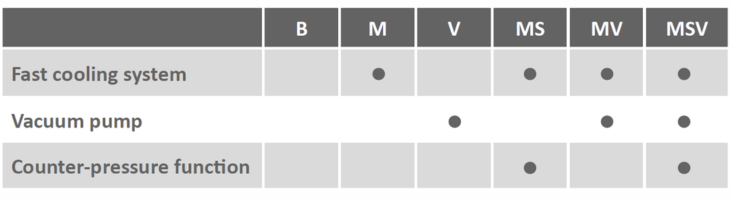

Configuration levels at a glance:

Basic model (HS-60/80/100 B)

  • integrated steam generator
  • automatic water feed
  • media temperature sensor
  • stainless steel chamber (AISI 316L)
  • timer function

Configuration level M (HS-60/80/100 M)

in addition to the basic model B:
  • fast cooling system for liquid sterilization

Configuration level MS (HS-60/80/100 MS)

in addition to the basic model B:
  • fast cooling system for liquid sterilization
  • counter-pressure function (compressed air must be provided by the customer)

Configuration level V (HS-60/80/100 V)

in addition to the basic model B:
  • vacuum function

Configuration level MV (HS-60/80/100 MV)

in addition to the basic model B:
  • fast cooling system for liquid sterilization
  • vacuum function

Configuration level MSV (HS 60/80/100 MSV)

in addition to the basic model B:
  • fast cooling system for liquid sterilization
  • counter-pressure function (compressed air must be provided by the customer)
  • vacuum function

Further options and accessories

  • Various loading baskets
  • Printer for documentation of sterilization processes
  • Documentation software as an alternative to the printer on request
  • Exhaust air filtration (for the sterilization of hazardous substances or for use in laboratories classified as safety level I, II or higher)

Additionally, each version/configuration level can be equipped with an ergonomic lift for loading and unloading heavy sterilization items.

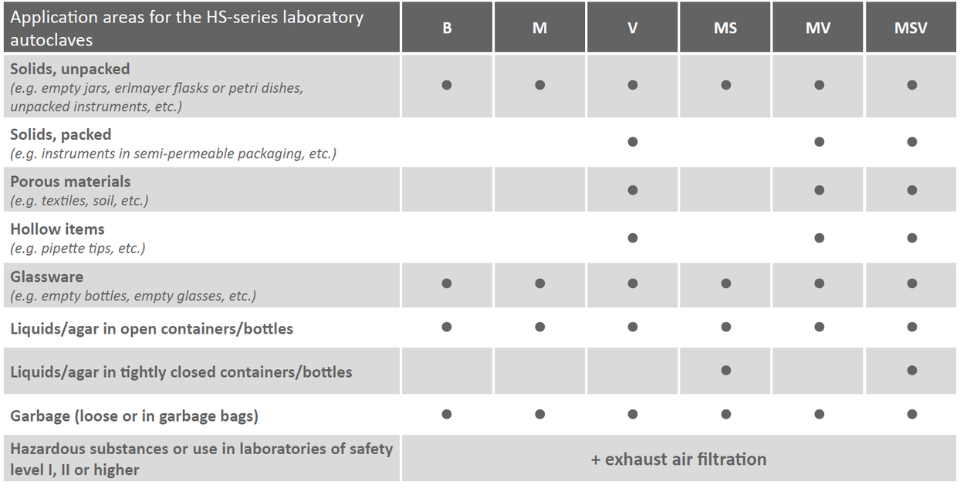

Applications/Use Cases

  • Technical data HS
  • Baskets & capacities
HS-60 HS-80 HS-100
Art. No. on request, varies depending on equipment
Chamber volume liters 64 84 104
Effective usable volume liters 60 80 100
Chamber dimensions (Ø x H) mm 413 x 460 413 x 610 413 x 760
External dimensions (W x D x H) mm 735 x 600 x 800 735 x 600 x 945 735 x 600 x 1100
Loading height mm 720 865 1020
Required space (W x D x H) mm 1335 x 750 x 1360 1335 x 750 x 1605 1335 x 750 x 1660
Electrical power kW 7 7 10
Weight kg 160 170 180
Power Supply V AC 400V - 50/60 Hz - 3 phase
Allowed operating temperature °C 142
Selectable operat. temperature °C 60 -136
Warming temperature °C 60 - 99
Max. operating pressure bar 2.8
Timer function Yes
Sterilization time min variable, 1 up to 600 minutes
Locking system quick release with hand lever
Certification according to 2014/68/EU; 2014/35/EU; 2014/30/EU; 2011/85/EU + 2015/863; CE 2274
Vessel material AISI 316L
Steam generation via integrated steam generator
Vacuum Yes, available in configuration levels V, MV, MSV
Safety systems safety valve, low water cut-off, pressure switch, overheat protection, power failure switch,
error indicator (visual and audible)
Documentation printer, documentation software
HS - Loading capacities Loading basket Loading basket Loading basket Loading basket Loading can
Art. No. 53006 53007 53008 53009 53010
Ext. dimensions (Ø x H), mm 360 x 550 360 x 275 360 x 200 360 x 140 375 x 290
